60 Servo Series Industrial Motor Core Combined IPM Structure

  • 1
  • 2

Brand Name : YUMA

Model Number : 60 servo stator and rotor stack large inertia

Certification : IATF16949, ISO14001，ISO45001

Place of Origin : Changzhou, China

MOQ : 100PCS

Price : Negotiable

Payment Terms : T/T

Supply Ability : 3 Million sets/Month

Delivery Time : 20days

Packaging Details : Plastic bag+Carton box+wooden pallet

Name : Motor core for industrial motor

Material : B35A300H

Application : Industrial Control

Is it customizable : Customizable

certification : IATF16949, ISO14001，ISO45001

Model : 60 servo stator and rotor stack

Contact Now

All specifications can be customized,Welcome your inquiry!

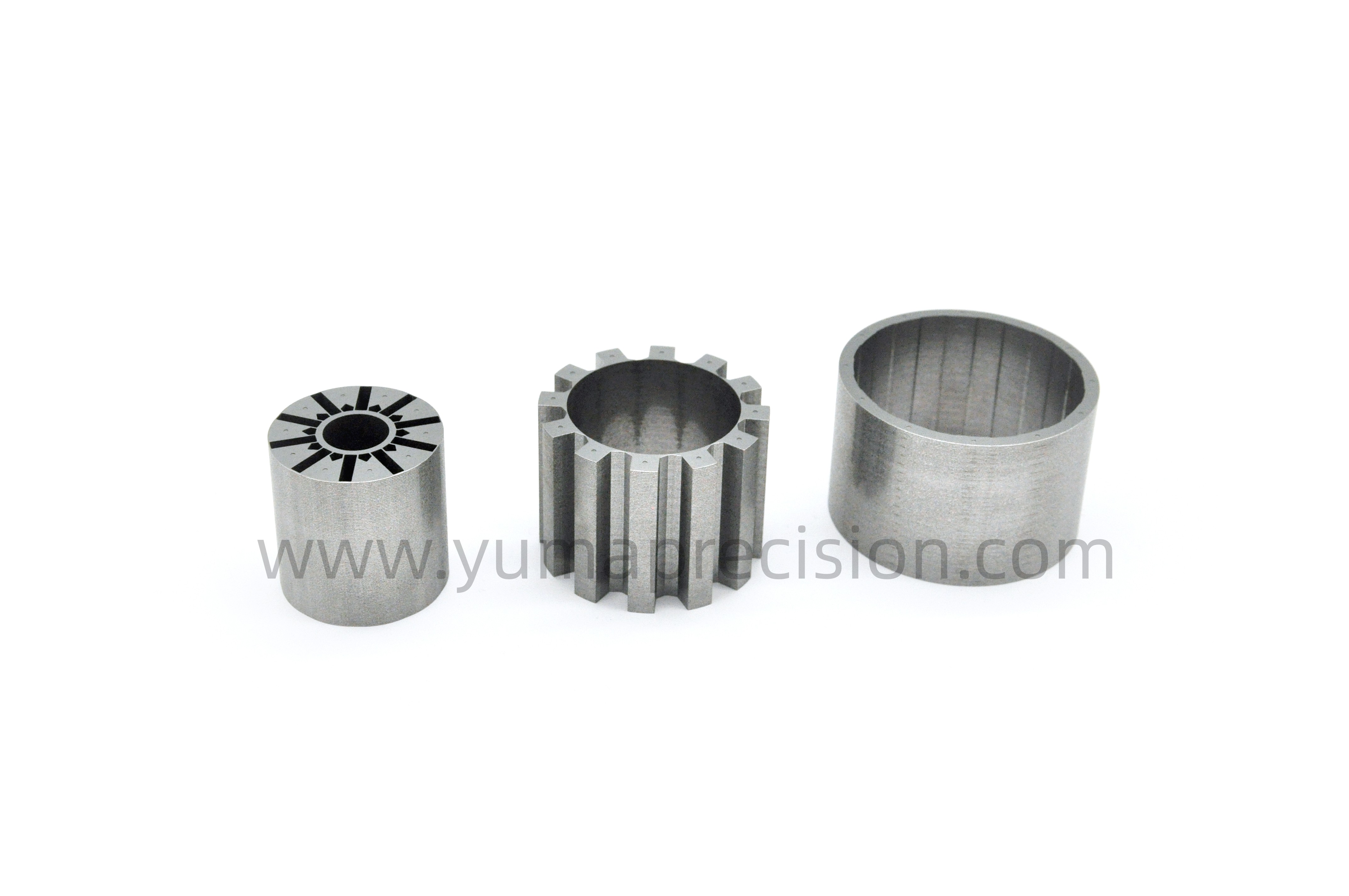

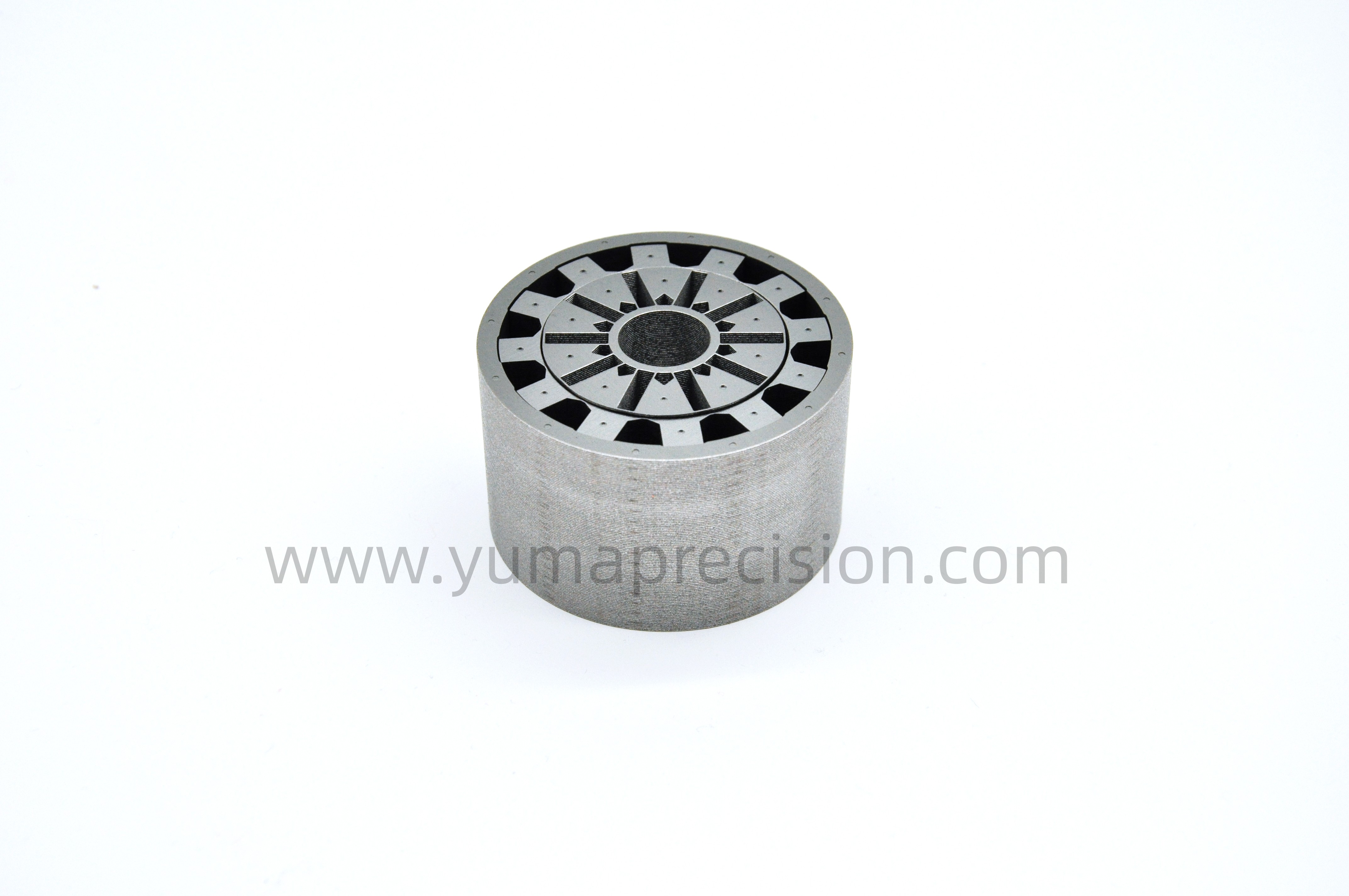

60 servo series (tooth yoke separation structure) stator and rotor cores for Industrial control motor

Specifications:

60 Servo Series Industrial Motor Core Combined IPM Structure60 Servo Series Industrial Motor Core Combined IPM Structure

The stator adopts the combined structure of tooth and yoke, which greatly reduces the production cost of

iron core compared with the conventional segment structure;In the design of the rotor, the magnetic steel

structure adopts IPM structure. Compared with the conventional SPM structure, the cost of the magnetic

steel is reduced synchronously. Moreover, the stator and rotor punched from one die, and the cost of a set

of iron core is reduced by more than 15% compared with the previous scheme.

yoke Stator Rotor
Outer diameter Inner diameter Pole width Number of slot skeleton Material thickness Outer diameter Inner diameter Pole Material thickness
57.8 51 　 　 　 0.35mm 37.6 14.2 10 0.35mm
tooth Stator
Outer diameter Inner diameter Pole width Number of slot skeleton Material thickness
51 38.2 5.9 12 　 0.35mm

60 Servo Series Industrial Motor Core Combined IPM Structure 60 Servo Series Industrial Motor Core Combined IPM Structure 60 Servo Series Industrial Motor Core Combined IPM Structure
Motor stator rotor core Stamping tool self developed equipment

60 Servo Series Industrial Motor Core Combined IPM Structure

60 Servo Series Industrial Motor Core Combined IPM Structure
